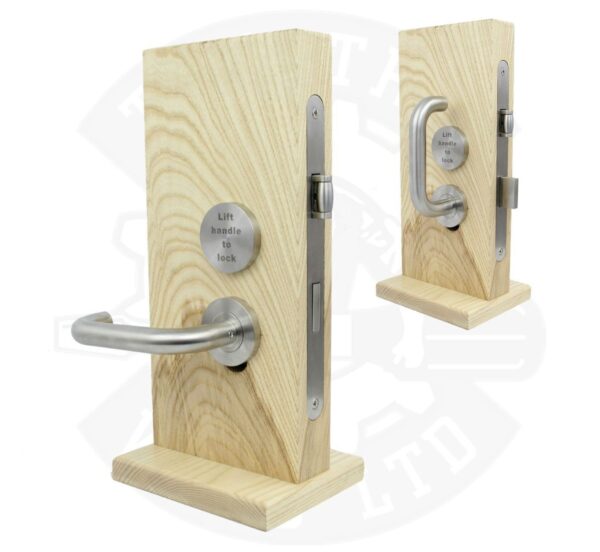

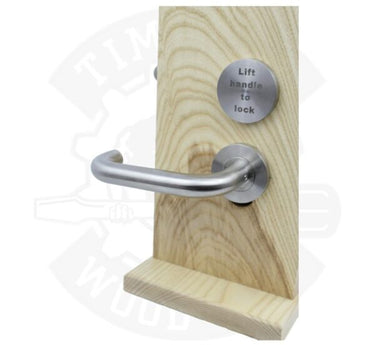

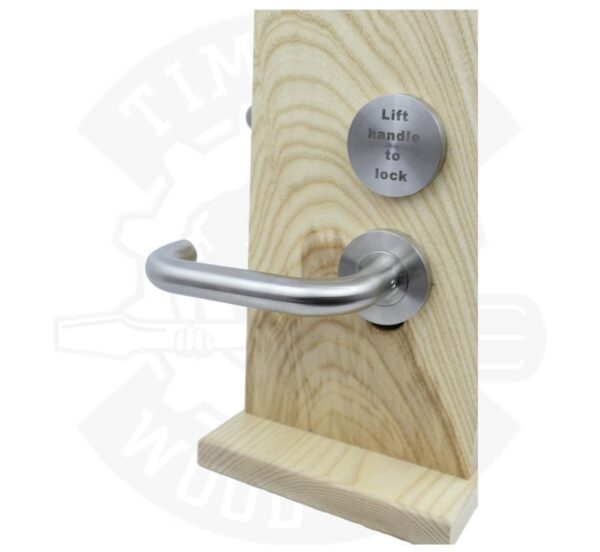

Lift to lock disabled toilet mortice door lock stainless steel

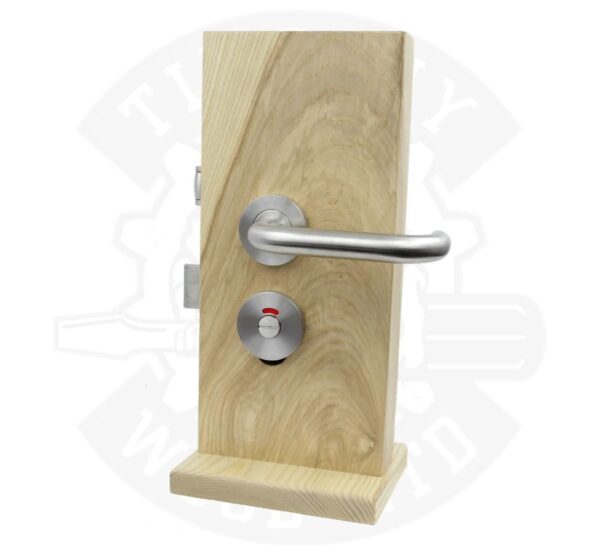

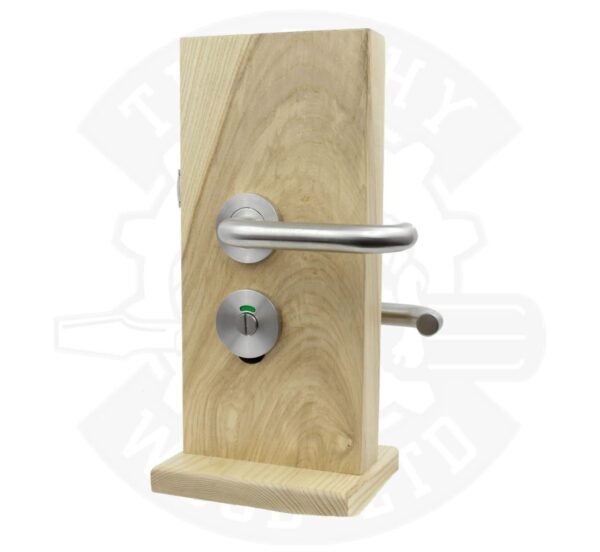

This DIN Lift to Lock set is part of Zoo hardware’s architectural locks range The lever works as normal for opening the door. Then you have 2 options: leave it as it is (don’t drill right through the door) or you can add a release indicator. Once inside the internal side of the lever set will be configured such that, the latch bolt is blanked off with a engraved covered escutcheon The deadbolt features the second lever handle, and by pushing the handle up extends the deadbolt and locks the door. By turning the handle down the dead bolt is withdrawn, further downward action of the lever withdraws the roller latch bolt, allowing exit Complies with the design requirements of BS8300 BS EN 1634-1 Grade 304 Stainless Steel Dimensions: 52mm x 8mm Push On Rose, Lever Length 121.5mm, Projection 67.5mm Unsprung 10 Year Mechanical Guarantee Fire tested suitable for 30 & 60 min timber doors Heso Spindle Sold & Supplied In Pairs With Bolt Through Fixings Suitable for 35-54mm Doors ZDL7260LLSS lock required for operation (Please see related products)
